Overview

This guide provides recommendations on what configuration to choose for different communication ranges, focusing on when to use tracking antennas and Bi-Directional Amplifiers (BDAs) for optimal link stability and performance.

For short-range communication (typically under 20–30 km), the use of antenna trackers and BDAs may not be necessary, as omni or low-gain directional antennas can often provide sufficient link quality. However, as the range increases especially beyond 50 km maintaining signal strength and link stability becomes more challenging due to factors like Free-Space Path Loss (FSPL), antenna alignment, and limited transmit power from the Uncrewed Aerial Vehicle (UAV).

In such scenarios, both antenna tracking systems and BDAs play a critical role in extending range and ensuring reliable connectivity. The following sections provide guidance on selecting the right hardware, radio settings, and deployment methods for each range category.

Hardware Requirement Summary by Range

Note: For all long-range missions (50+ km) it is possible to achieve with a tracking antenna alone, depending on antenna gain, link conditions, and bandwidth. BDAs should be considered when additional link margin, higher throughput, or anti-jamming capability is required..

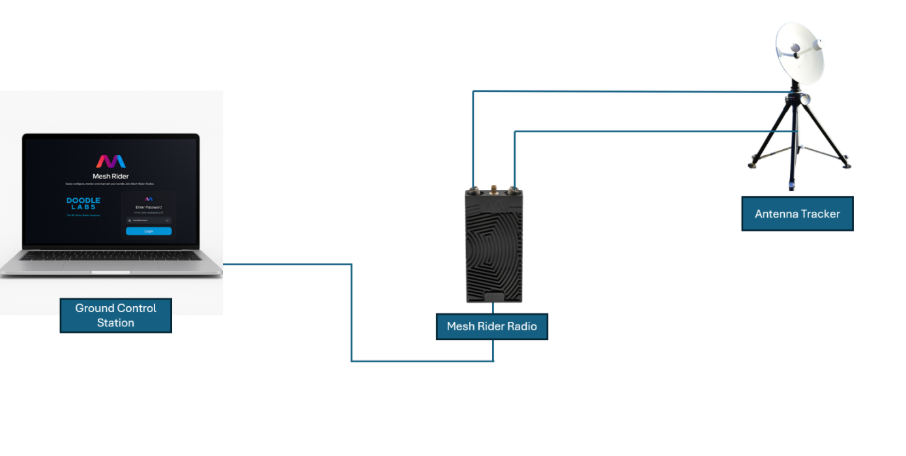

Tracking Antennas for Long-Range Stability



Why It Matters:

When the communication range exceeds 50 km, maintaining precise antenna alignment becomes critical to preserve Signal-to-Noise Ratio (SNR) and prevent link degradation. A misaligned antenna can lead to severe packet loss, lower throughput, and even complete link drops—especially when using narrow beam, high-gain antennas.

Key Considerations:

•        - Directional Antennas Only: Tracking is necessary when using panel or dish                       antennas with narrow beamwidths (<10°).

•        - Global Positioning System (GPS) Signal Feedback Required: Most tracking systems           require GPS location data from the UAV for real-time pointing.

•        - Telemetry or Inertial Backup: In GPS-denied environments, tracking can fall back to           inertial navigation or RF-based telemetry correction.

•        - Beamwidth-to-Accuracy Ratio: Narrower beams require more accuracy.

•                      10° beamwidth → ~±5° tolerance

•                       3° beamwidth → ~±1.5° tolerance

•        - Dual-Polarization or Multiple Input Multiple Output (MIMO) Support: Improves                 performance under dynamic flight conditions.

•        - Physical Stability: Gimbal mounts must resist vibration.
•        - Environmental Protection: IP-rated enclosures and weather protection are essential.


Example: Link Budget and Throughput at 50 km


Radio Configuration Guidelines

Note: For all long-range missions (50+ km) it is possible to achieve with a tracking

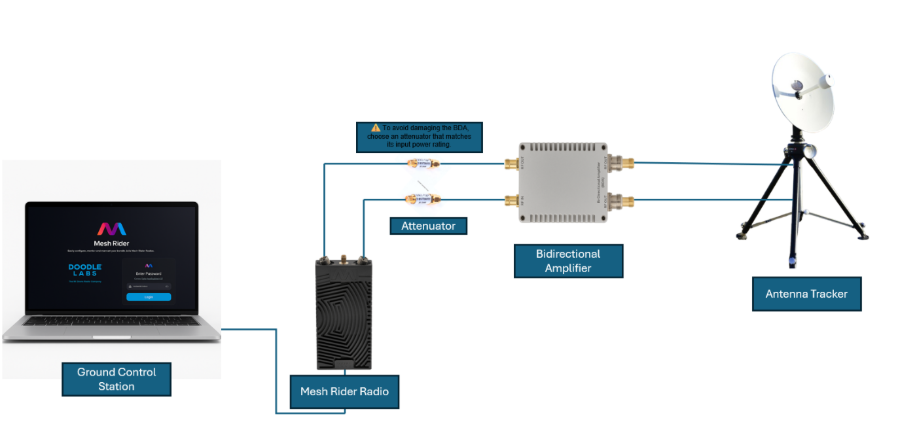

Bi-Directional Amplifiers (BDAs)



Function:

BDAs extend the communication range by amplifying transmit (TX) power.

BDA Use Cases:

1. - Range Extension – BDA on both ends required for maximum distance.
   - Anti-Jamming – BDA on GCS to overcome the noise at the UAV.
   - Improved Downlink – BDA on UAV for higher throughput.


   (Note : BDAs are required on both ends GCS as well as UAV).

Integration Guidelines:

•       - TX Gain: TX Gain when added to the output power of the Doodle Labs radio                  should not exceed the output power of the BDA to avoid compression. Most                    Doodle Labs Mesh Rider radios have a minimum output power of around 20 dBm.

•       - RX Gain: RX Gain should be between 5 and 10 dB for best performance.

•       - Auto-Switching: Use Time-Division Duplex (TDD)-compatible BDAs capable of                switching within 1 microsecond.

•       - Cable Loss: Minimize connector and coax losses.

•       - Heat Extraction: Ensure BDAs operate within their rated temperature range.

•       - Coaxial Cabling: Use low-loss shielded cables (e.g., LMR-400).

Validated Vendors:

•       - Triad RF Systems (10–25 W)

•       - NuWaves Engineering (20–25 W)



Note: In some cases, BDAs will require in-line attenuators between the radio and the BDA. We recommend reaching out to our sales team (sales@doodlelabs.com) for BDAs that have been validated with our radios.

Radio Configuration Guidelines

Note: There’s also a hard limit - 20 MHz works up to ~50 km, 10 MHz works up to ~100 km, and   5 MHz works up to ~200 km.

Range-Based Deployment Examples


50–100 km

100+ km

200+ km

Final Notes

• For more information, reach out to us at 📩 technical_support@doodlelabs.com
